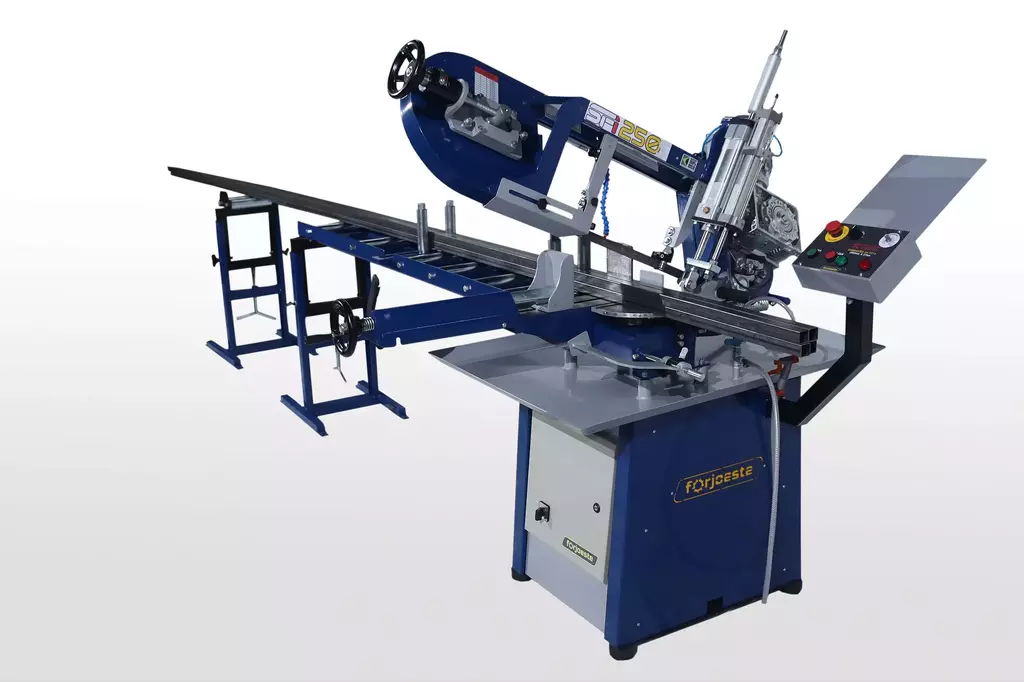

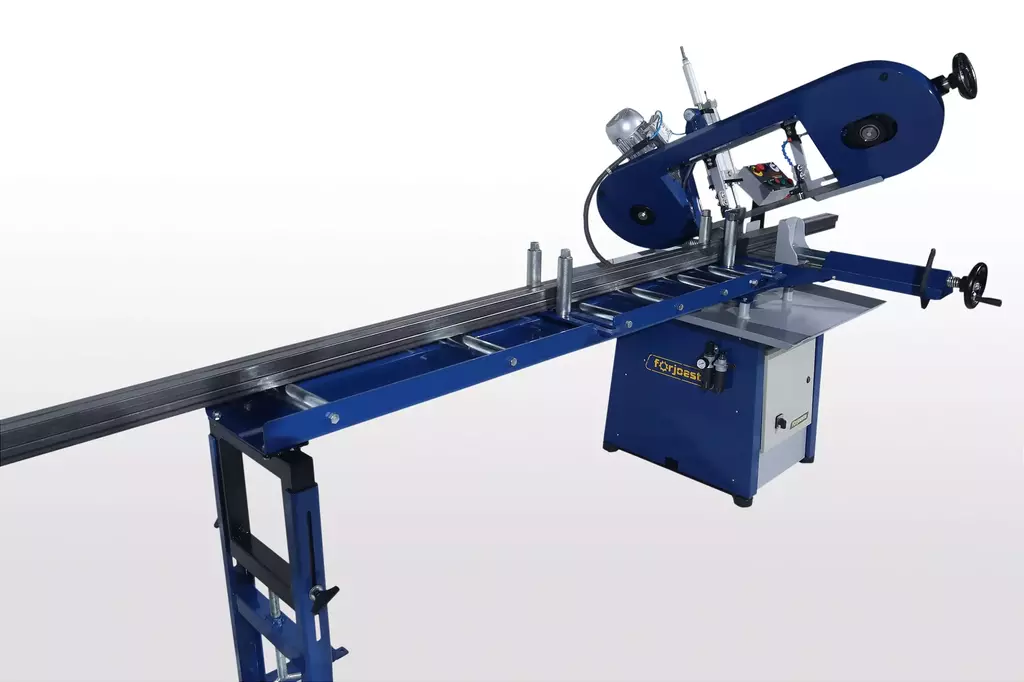

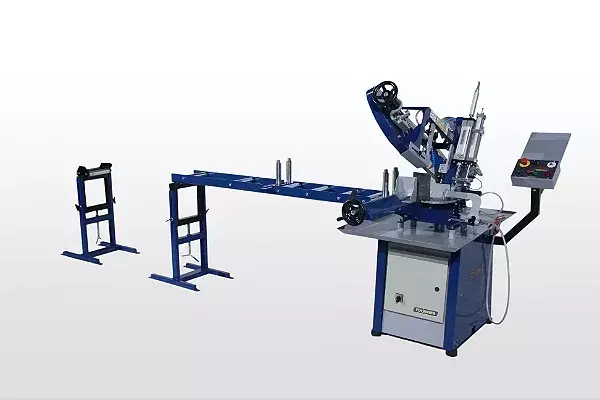

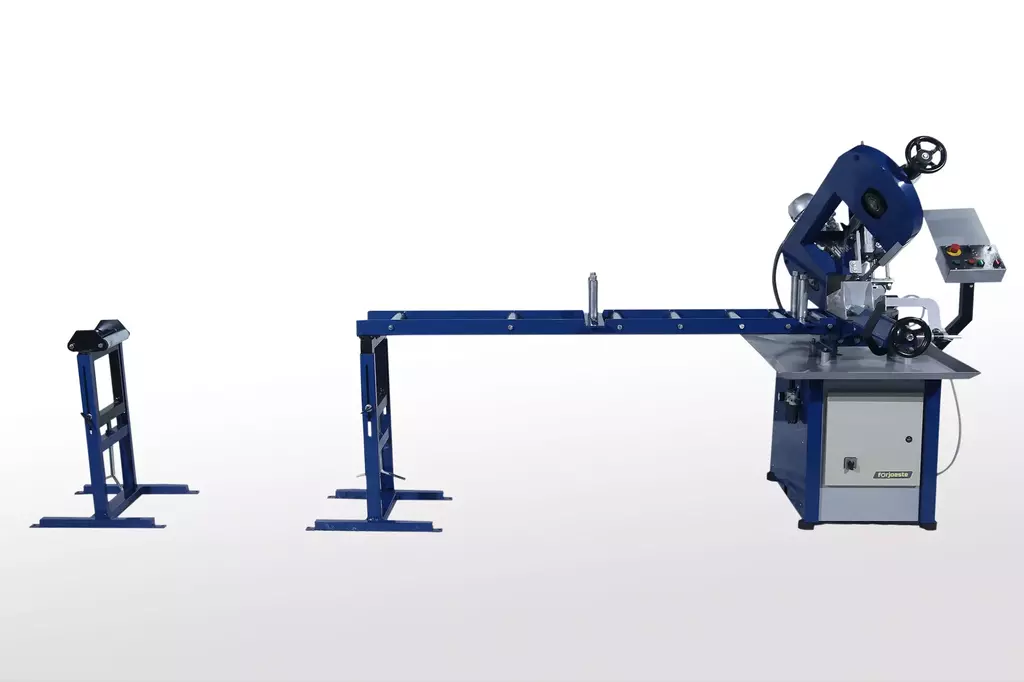

The Semi-Automatic Band Saw SFi 250S is an efficient machine with good cutting capacity.

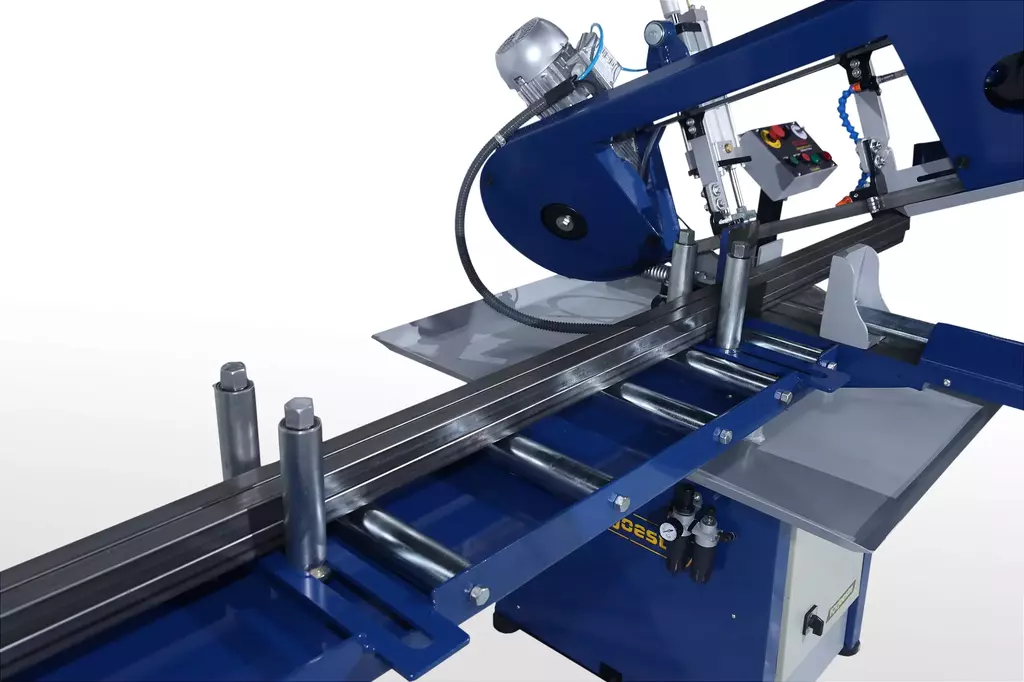

Control panel with folder holder and quick clamp vise.
The ascent is facilitated by the Semi-Automatic Piston System which eases the operator's handling.
Want to know if this is the product you need?
Contact us via chat and clear all your doubts.
Sales with card in up to 12 installments and up to 48 installments with BNDES.
The machines are built with ASTM A36 structural steel;
The blade tensioner allows for more precise blade adjustment, preventing cracks, breaks, and wear. Built from laser and plasma cut sheet blocks, it is extremely durable and easy to maintain.
Continuous handling parts are zinc-plated and treated for durability and machine finish;
The cutting advance system is hydraulic with hydro-check, providing a fine adjustment of cutting speed;
The parts are prepared with surface treatment bath and electrostatic painting. The cutting support table is designed to prevent material deviation during cutting, contributing to better blade and machine durability;
The angle system is one of the best and fastest available, being very easy to operate and highly functional, providing excellent cuts for materials requiring perfect fits;
The cooling system is water pump-based, housed inside the machine base and coupled to the reservoir box, turning on when the saw is activated;
The machine has safety and warning stickers on its structure to alert the operator to the risk of accidents when handling the machine;
The electrical components are from renowned brands and comply with current technical standards;
The machine's height is well-designed to prevent health issues for the operator over the years.
The machine has a 1-year warranty against manufacturing defects. The warranty does not cover wear components such as: cutting blade, motors, pumps, relays, sensors, limit switches, fuses, lamps, buttons, hoses, paint, and seals. The warranty does not cover defects and accidents resulting from improper operation of the equipment or repairs carried out by the Buyer without prior written authorization from the Manufacturer during the warranty period.
The DISTINCTIVE FEATURE of this machine, making it more practical for the work environment, is that it has 2 pneumatic pistons for better task performance, reducing operator fatigue and thus increasing productivity. The cutting column ascent piston is adjustable so that the machine only ascends as necessary, automatically activating at the end of the cut. Once the machine finishes cutting, a sensor informs and it lifts by itself. The vise piston is manually activated but does not need to be fully opened. The clamp key has a system that allows you to operate by opening or closing the piston to the required opening, without wasting time.
It also includes an ergonomically correct operation box with a folder holder for better daily work performance.
Product |
Horizontal Band Saw Machine 250mm |
Model |
SFi 250 S |
Brand |
Forjoeste® |
Angle Cut |
Yes |
Straight Cutting Capacity |
250 x 250mm Tubes (LxH) | 200mm in Solids |
Angle Cutting Capacity – 45° |
190 x 250mm (LxH) |
Angle Cutting Capacity – 60° |
140 x 100mm (LxH) |
Angle Cutting Capacity – 66° |
110 x 90mm (LxH) |
Lifting of the Cutting Structure |
Automatic |
Lowering of the Cutting Structure |
Adjustable hydraulic control Hydro-check |
Water Pump |
Texeus 1/8 HP Tri |
Motor |
HERCULES 1.5 HP Tri |
Bearings |
DDU Sealed |
Reducer |
MK 1×20 Turns |
Angle Scale |
0 to 70° |
Cutting Speed |
Variable |
Cooling System |
Constant when turning on the machine or optional |
Cooling Fluid Reservoir |
20L |
Electric Activation Switch |
Yes, meeting electrical standards |
Automatic Shut-off at the end of the Cut |
Sensor |
Blade |
27 mm X 2950 mm |
Length |
1900 mm |
Width |
1800 mm |
Height |
2220 mm |
Weight |
290kg |
